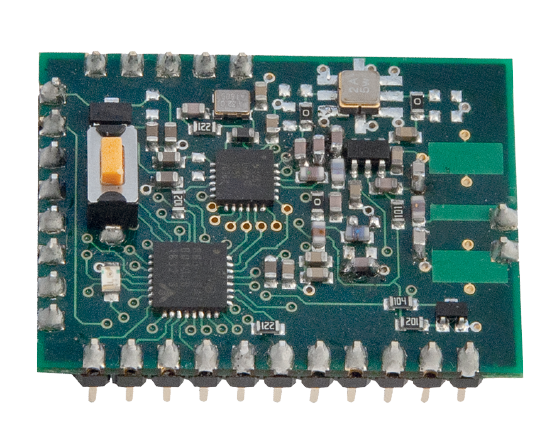

lora-removebg-preview

LoRa Gateway / IO

A Peer-to-Peer (P2P) Private LoRa communication allows Direct Bidirectional Communication between any two devices without any Gateway infrastructure or uplink/downlink restrictions imposed by LoRaWAN protocol on end devices. Higher LoRa receive sensitivity extends operating range in applications where FSK transmit power cannot be increased above unlicensed band ERP limit.

Features

Point-to-Point, Point-to-Multipoint with Addressing
Customizable 150-960MHz
RF Power: +20dBm (100mW)
8 Digital Inputs for Remote Controller
8 Digital Outputs for Actuator
4 Digital Inputs, 4 Digital Outputs for Bidirectional Remote Control
Wakes up from sleep mode to transmit input status change
250-byte buffer 3.3V TTL UART Serial Data Modem
Channel Activity Detection (CAD)
Packet Acknowledgement
Learn Pairing Addresses for Remote Control

Applications

Industrial/Commercial Telemetry and Telecommand or Non-specific SRD usage
In-building environmental monitoring and control
Security & Alarm
Automated Irrigation System

TECHNICAL DATA

Size: 33 x 25 x 8mm
779-787MHz (China), 865-867MHz (India), 863-870MHz (EU), 902-928MHz (US)
32MHz TCXO Reference with ±2.0ppm frequency stability over -30˚C +85˚C
SAW front end filter
Supply Voltage range: 4V-16V DC
User baud rate: 9600bps (default), 19200, 38400, 57600, 115200
Modulation Bandwidth (BW): 7, 15, 31, 62, 125, 250, 500kHz
Spreading Factor (SF): 7, 8, 9, 10, 11, 12
Coding Rate: 4/5, 4/6, 4/7
32MHz TCXO Reference with ±2.0ppm frequency stability over -30˚C +85˚C
SAW front end filter
